TAKEX Là nhà sản xuất thiết bị an ninh, Takenaka Engineering Co., Ltd. cung cấp các sản phẩm và dịch vụ để bảo vệ tính mạng, tài sản và sự thoải mái của con người, dựa trên nhu cầu của khách hàng thì TAKEX muốn muốn đáp ứng nhu cầu đảm bảo an ninh và mang lại sự an toàn và yên tâm đến với mọi khách hàng.
Các thiết bị TAKEX cung cấp có độ tin cậy cao, mang lại hiệu suất cao và được khách hàng đánh giá cao. TAKEX muốn tiếp tục đương đầu với những thách thức bằng cách khám phá những khả năng vô hạn của hệ thống cảm biến, góp phần mang lại sự an toàn và yên tâm cho xã hội.

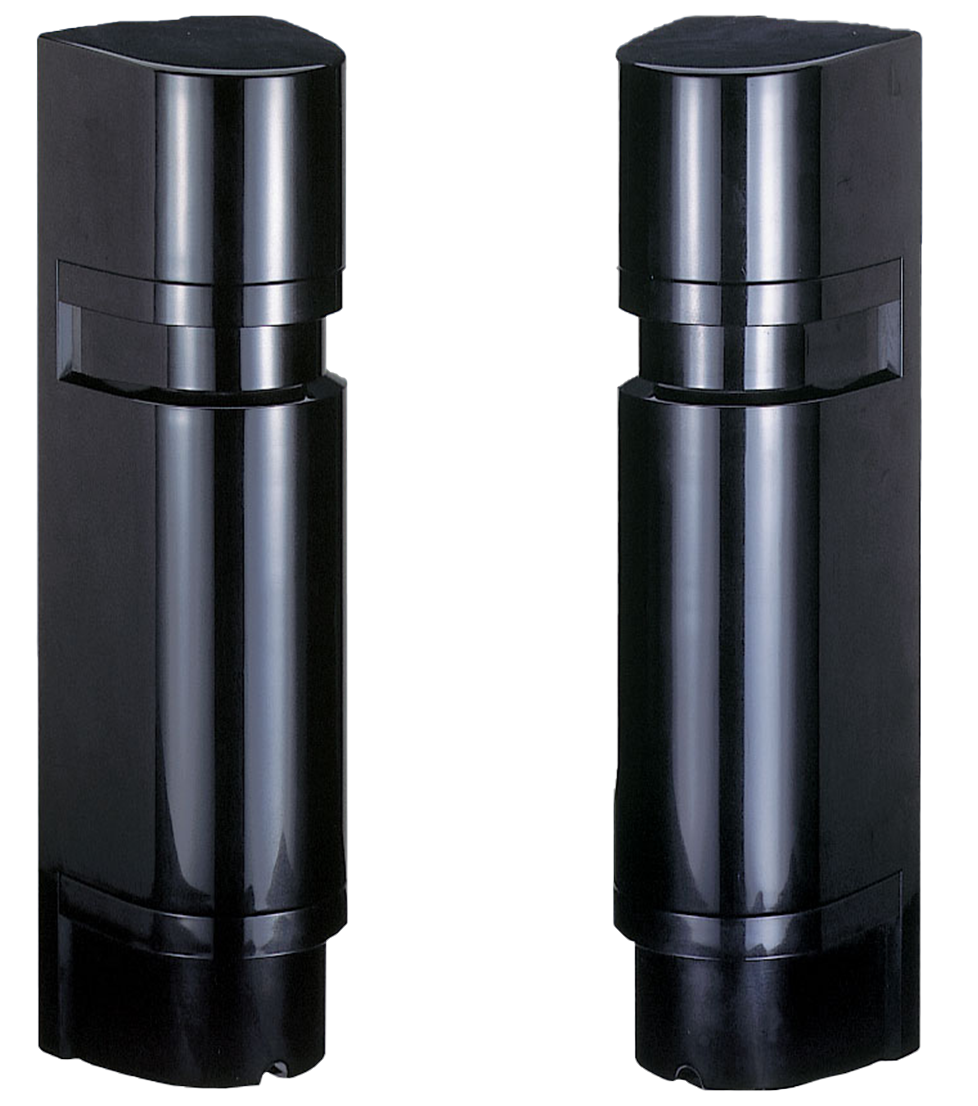

PHOTO-ELECTRIC QUAD BEAM SENSOR
Specification :
Quad Beam for Outdoor 50/100/200m
- Detection principle: Interrupt 4 rays at the same time
- 4x synchronized high power beam; 4 selectable beam channels to prevent crosstalk
- Double modulation for unsurpassed light immunity; Response time 50ms to 700ms
- Auto-gain lock (AGL); Environmental monitoring circuit; IP55 Housing
Specification :
Quad Beam for Outdoor 50/100/200m
- Detection principle: Interrupt 4 rays at the same time
- 4x synchronized high power beam; 4 selectable beam channels to prevent crosstalk
- Double modulation for unsurpassed light immunity; Increase beam separate minimizes ruisance alarms
- Auto-gain lock; Environmental monitoring circuit; Response time 50ms to 700ms
- Lighting and Surge Protection up to 15kV; 50,000 lux sunlight immunity; IP65 Housing
Specification :

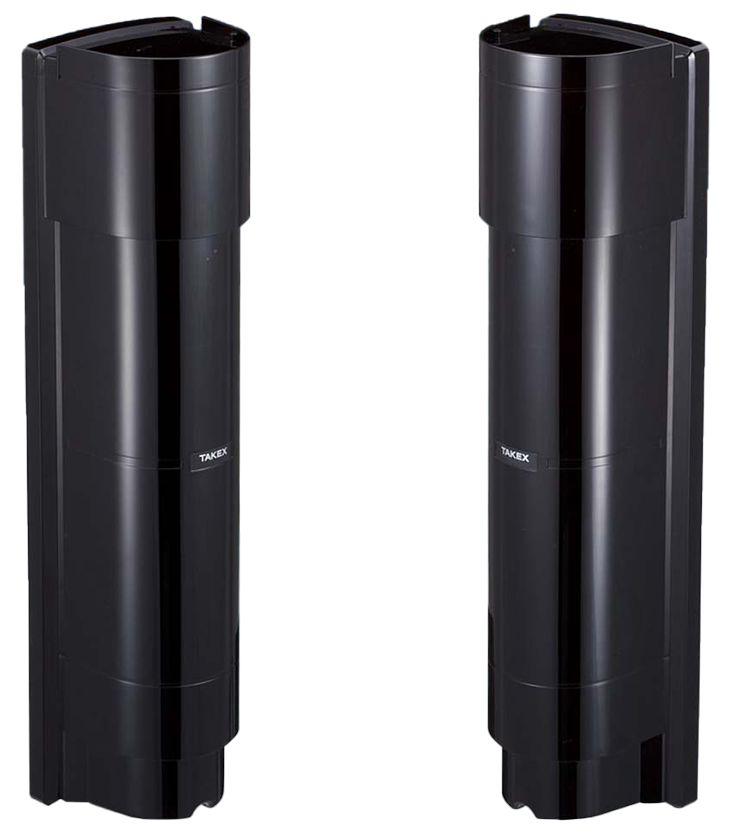

Anti-crawl quad beam for outdoor 100m
- Independent control of upper and lower beams; Choose between Synchro-quad and anti-crawl operation
- Dual outputs for crawl attempt and full beam break; Sync wire allows stacking without crosstalk; Increase beam separate minimizes ruisance alarms
- Detection principle: Interrupt 4 rays at the same time; 4x synchronized high power beam; 4 selectable beam channels to prevent crosstalk
- Auto-gain lock; Environmental monitoring circuit; Double modulation for unsurpassed light immunity
- Lighting and Surge Protection up to 15kV; 50,000 lux sunlight immunity; Response time 50ms to 700ms; IP65 Housing

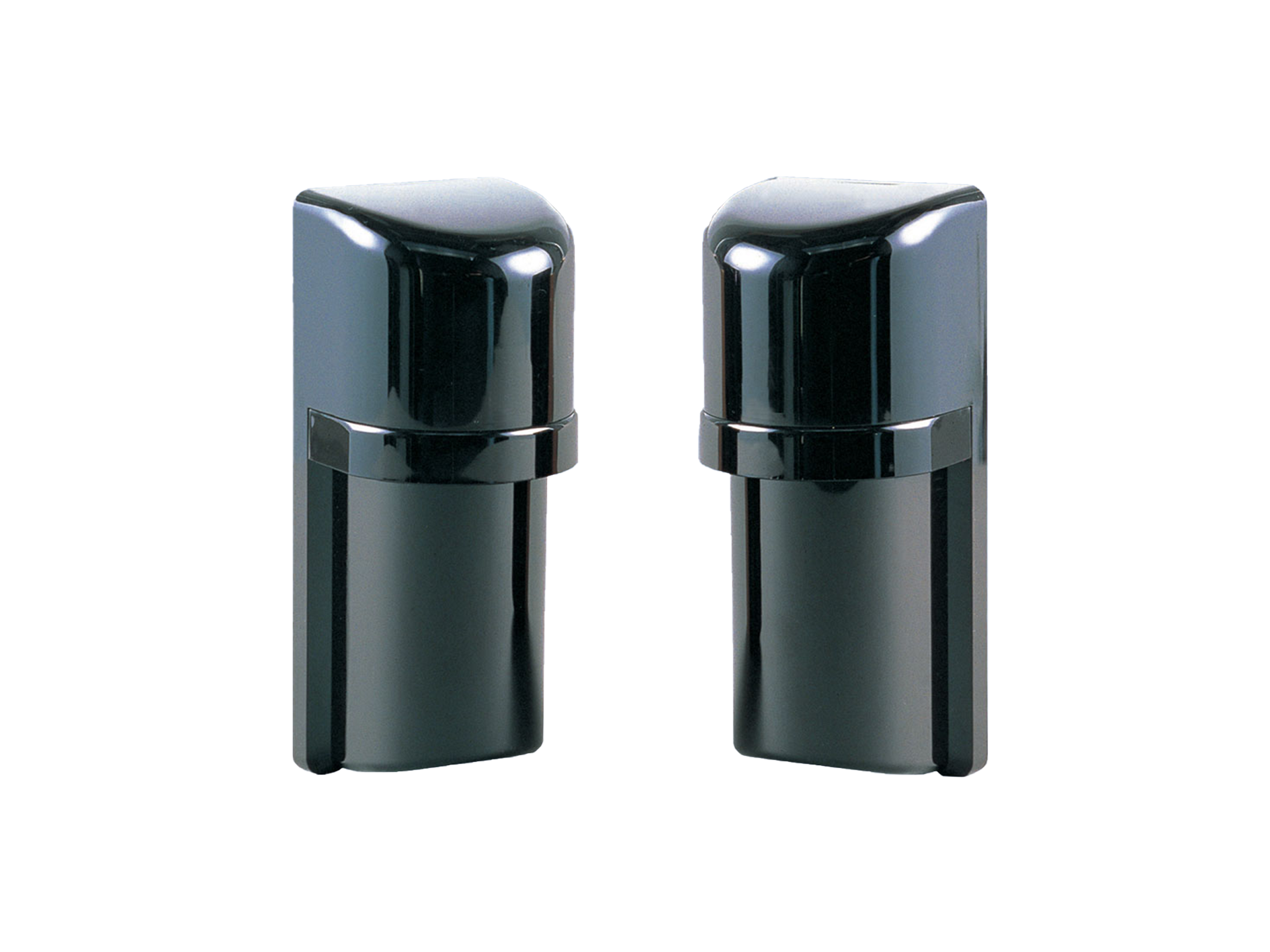

TWIN BEAM SENSOR - OUTDOOR
Specification :
Twin beam sensor for outdoor 30/60/100m
- Detection principle: Interrupt 2 rays at the same time
- 2 x synchronized high power beams
- Auto-gain control; Double modulation for unsurpassed light immunity
- 50,000 lux sunlight immunity; Response time 50ms to 700ms; IP54 Housing

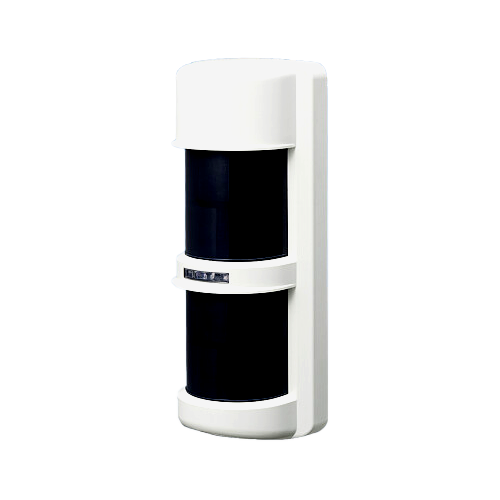

DUAL ZONE PIR - OUTDOOR/INDOOR
Specification :
Dual-zone Pir 12m x 180° fixed sensor
- Dual 2 zone detection system: each dual zone consists of upper and lower zones.
- Sensitivity adjustment according to actual installation: sensor sensitivity and pulse counting
- 3 to 12m coverage, Angle 180° variable; Fixed sensor heads; IP54 housing
- Supplied masking sheets allow precise area control; Pet immunity 70 ~80cm
Specification :
Dual-zone Pir 12m x 90° Rotating Sensor
- Dual 1 zone detection system
- Sensitivity adjustment according to actual installation: sensor sensitivity and pulse counting
- 2 to 12m coverage, Angle 90° variable; Rotating sensor heads
- Supplied masking sheets allow precise area control; Pet immunity 70 ~80cm; IP54 Housing
Specification :
Dual-zone Pir 12m x 180° Rotating Sensor
- Dual 2 zone detection system: each dual zone consists of upper and lower zones, AND or OR detection modes
- Sensitivity adjustment according to actual installation: sensor sensitivity and pulse counting
- 2 to 12m coverage, Angle 180° variable; Rotating sensor heads; IP54 Housing
- Supplied masking sheets allow precise area control; Pet immunity 70 ~80cm
SINGLE PIR - INDOOR/OUTDOOR
Specification :

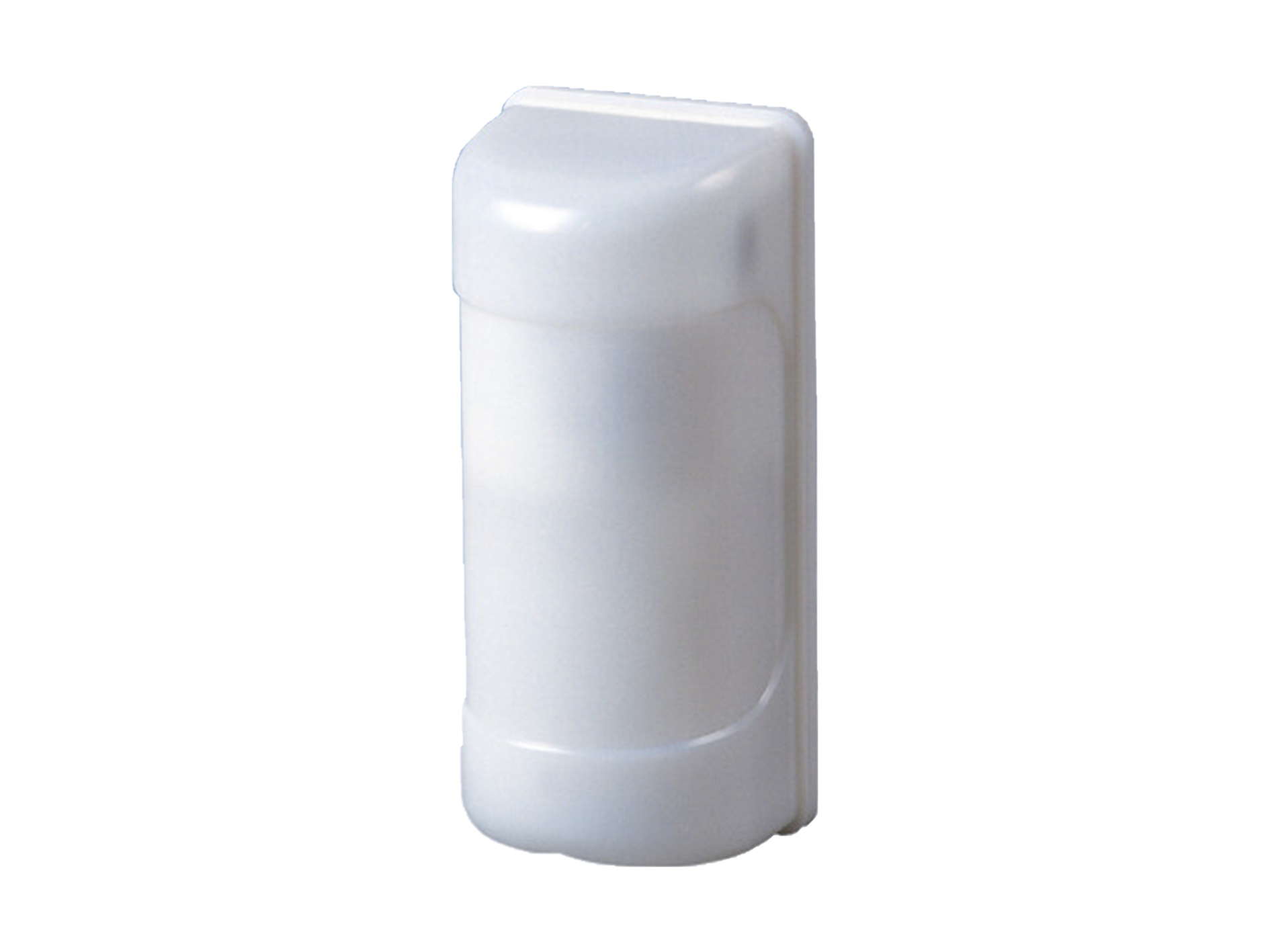

Single Pir 10m wide /10m curtain/20m long
- Vertical installation: Volumetric scanning (10mx64 degrees), curtain scanning (10m); long beam: (20m); Horizontal installation: blinds (3mx4m)
- Sensor head rotates a full 180 degrees
- IP43 Housing
SINGLE PIR - INDOOR
Specification :

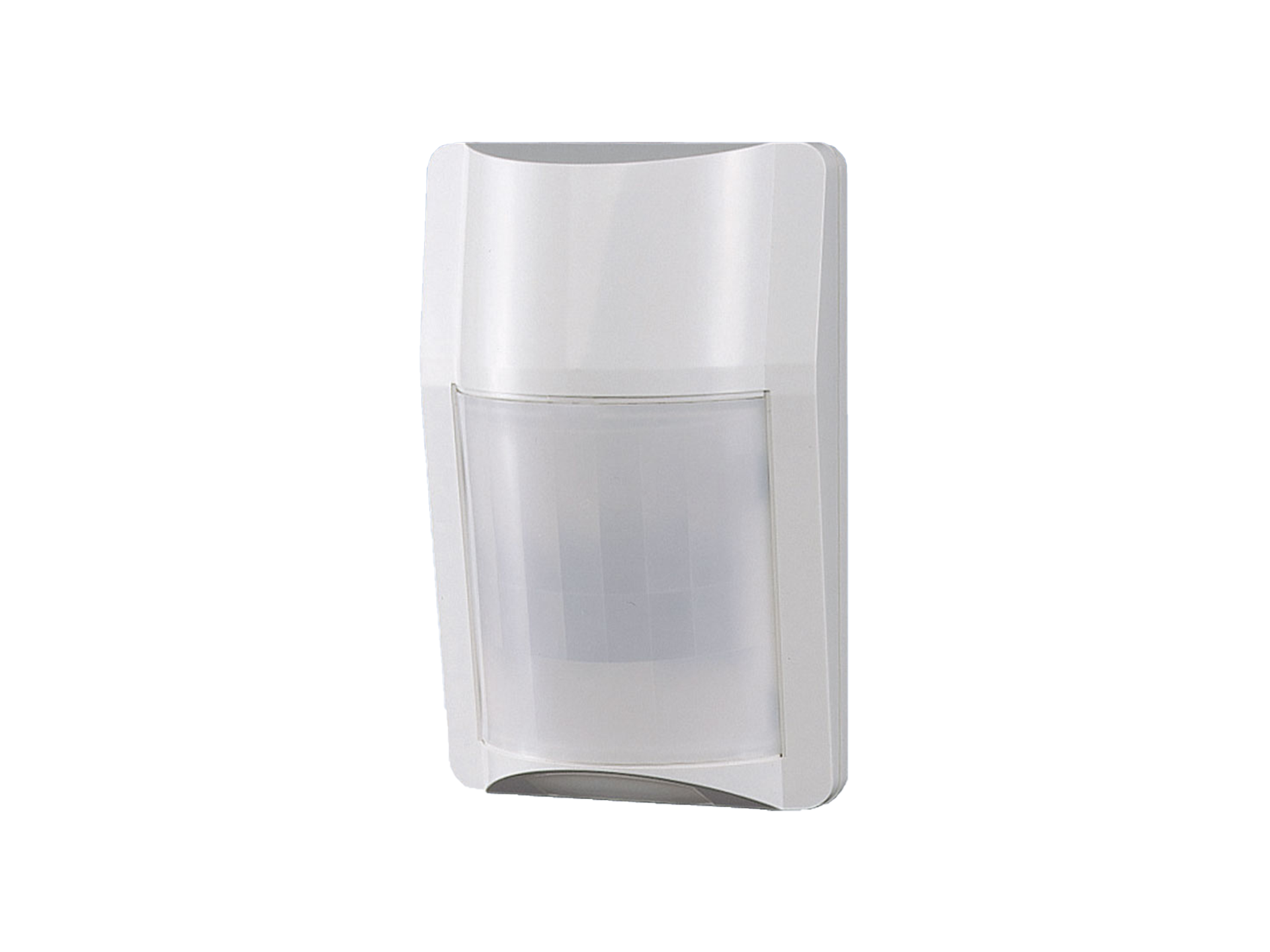

Single pir indoor 11m wide angle
- New generation 4 bit microprocessor; Do not report pets under 20kg
- Stability and improved resistance to radio frequency, mains, and electrostatic interference
- Alarm output port using Photo mos-fet relay-
- Alarm when breaking, automatically reset alarm memory
- Adjust the detection range or according to different heights
DUAL ZONE PIR - OUTDOOR/INDOOR
Specification :

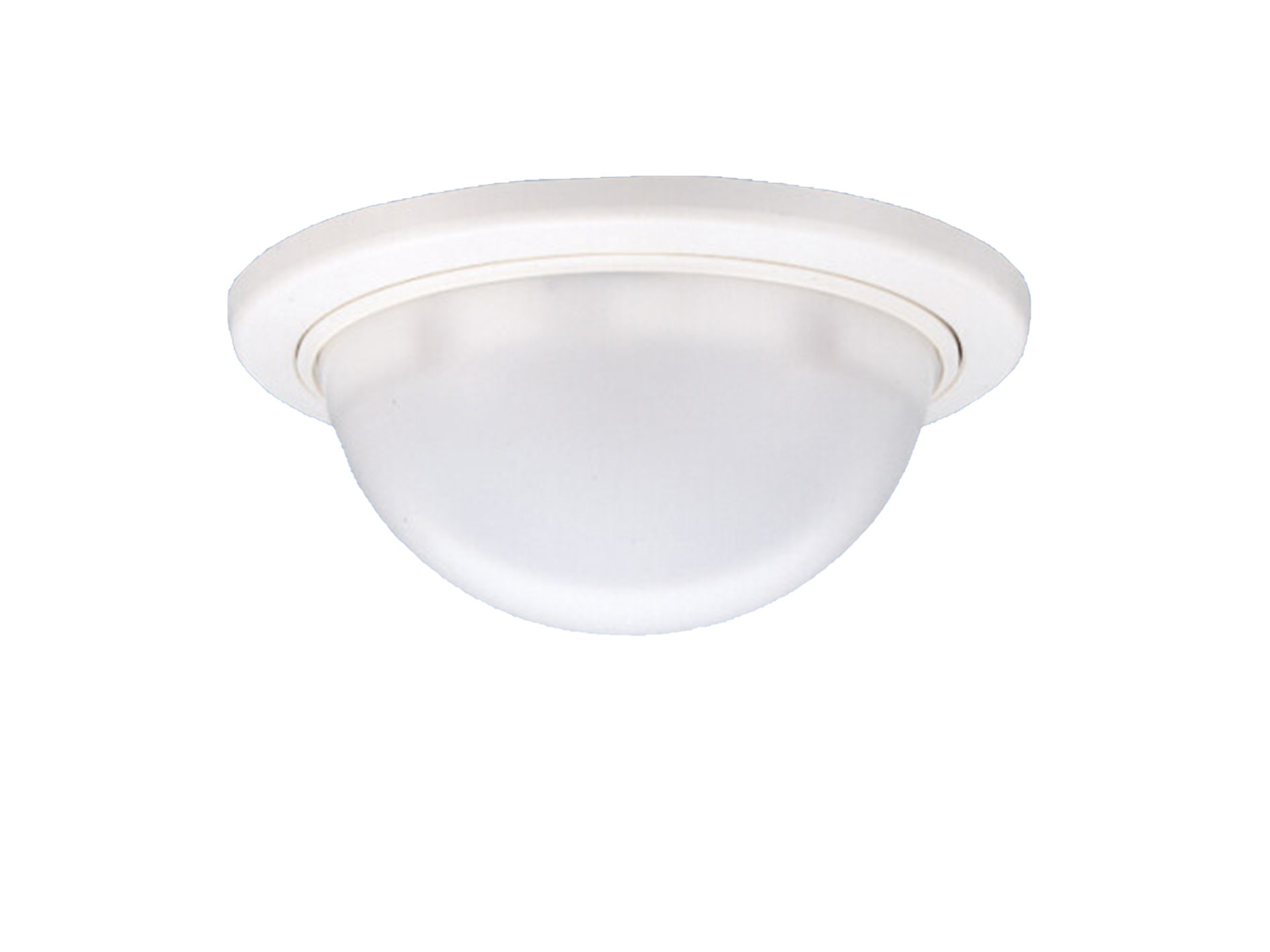

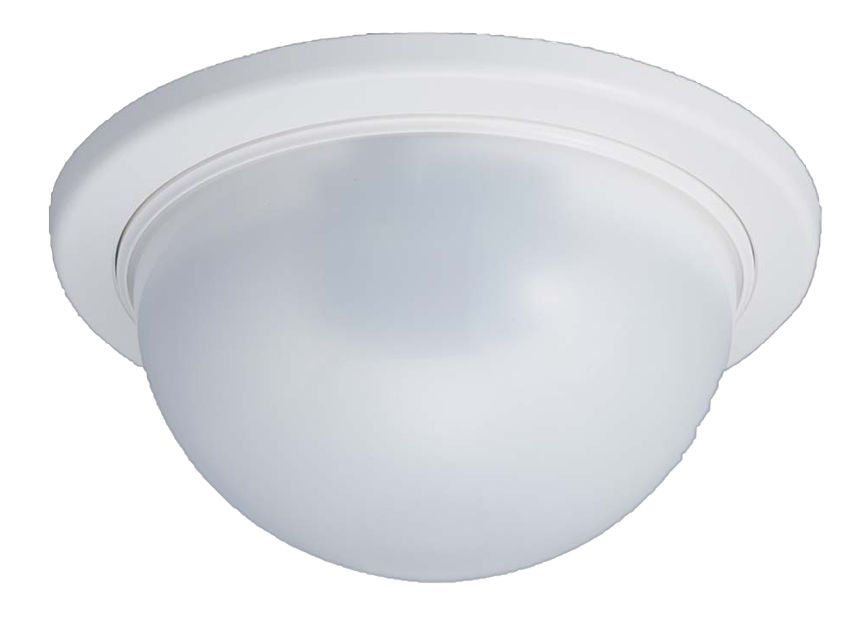

Ceiling Mount infrared x2 12m Wide angle Indoor
- Up to 4m installation height; Unique twin mirror and two twin pyro optic system
- Accurate detects human intrusion whilst rejecting nuisance alarms from small animals
- Greared mirror array for precise area definition; Detachable base unit with snap-in/out sensor design
- Photo mos-fet relay for silent operation; High RFI and EMI immunity
Specification :
Ceiling Mount infrared x2 4m Spot Indoor
- 2 to 4,9m installation height; Unique twin mirror and two twin pyro optic system
- Accurate detects human intrusion whilst rejecting nuisance alarms from small animals
- Greared mirror array for precise area definition; Detachable base unit with snap-in/out sensor design
- Photo mos-fet relay for silent operation; High RFI and EMI immunity; Slim and compact 47mm profile
Specification :
Ceiling Mount infrared x2 15m 360° Indoor
- 2 to 4,9m installation height; Unique twin mirror and two twin pyro optic system
- Accurate detects human intrusion whilst rejecting nuisance alarms from small animals
- Greared mirror array for precise area definition; Detachable base unit with snap-in/out sensor design
- Photo mos-fet relay for silent operation; High RFI and EMI immunity; Slim and compact 47mm profile
Specification :
Ceiling Mount infrared x2 12m Wide angle Indoor
- 2 to 4,9m installation height; Unique twin mirror and two twin pyro optic system
- Accurate detects human intrusion whilst rejecting nuisance alarms from small animals
- Greared mirror array for precise area definition; Detachable base unit with snap-in/out sensor design
- Photo mos-fet relay for silent operation; High RFI and EMI immunity; Slim and compact 47mm profile
ACCESSORIES
MODEL : BCW-401
Specification :
Wall/ceiling mount attachment
For:
- PA-450E/450PI/460E
- PA-470L/480S
- PA-6612E
- PA-6805/6810/6812/6820E
